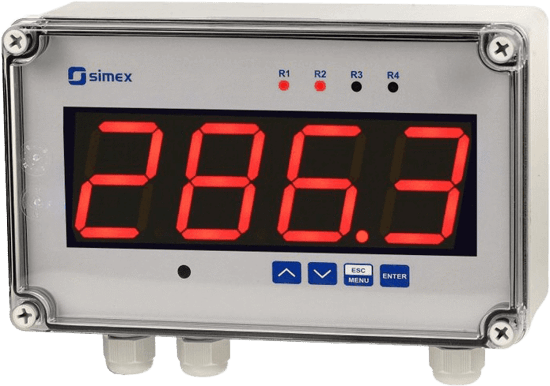

SUR-457 Universal Meter
Brand: SIMEX sp. z o.o.The SUR-457 meter is equipped with one universal input, type: 0/4-20 mA, 0-10V, 0-150 mV, Pt 100/500/1000 or TC: K, S, J, T, N, R, B, E.
During the measurement process only one kind of input is available.
As a main advantage, this device is equipped with a large, 57 mm high display offering ultra bright red, green and blue as well as multicolour LED's.
Thanks to the tight housing with high: IP 67 protection degree, this device is particularly suitable for operations in harsh environments.
Due to wide range of characteristic curves: linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks, the meters may be used in various process control systems.
The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems.
The REL / OC control outputs can adjust the level of measured signal and are controlled according to one or two threshold values.
Moreover, the meter can be equipped with analogue outputs, according to the customer selection: active current output, passive isolated current output or active voltage output.
The meter may be configured with no need to open the case, by using the remote controller or with free S-Config software via the RS-485 communication port.
Features- Universal Meter in Tight, Wall Mounting Case, IP 67
- Multicolour or Ultra Bright Red, Green and Blue, 57 mm LED Display
- Universal Input: 0/4-20 mA, 0-10V, 0-150 mV, RTD or TC
- Binary Outputs REL / OC
- Analogue Output: Active or Passive, Power Supply Output: 24V DC
- RS-485 / Modbus RTU
- Signal Peak Value Detection
- Free Configuration S-Config Software
Specifications
Brand
Number of Inputs
- 1
Input Type
- Universal
Input Range
- 4-20 mA
- 0-60 mV, 0-75 mV, 0-100 mV, 0-150 mV
- 0/1-5 V, 0/2-10 V
- 0-300 Ω, 0-3 kΩ
- Pt100, Pt500, Pt1000: -100 to +600° C
- TC K: -200 to +1370° C, S: -50 to +1768° C, J: -210 to +1200° C, T: -200 to +400° C, N: -200 to +1300° C, R: -50 to +1768° C, B: +250 to +1820° C, E: -200 to +1000° C
Output Type
- Depends on Configuration
- Relay I=1A, U=30 Vdc/250 Vac (cosø=1)
- Open Collector: I=30 mA, U=30 Vdc, P=100 mW
- 0/4-20 mA: active current, operating range 0-24 mA max., load resistance 700 Ω max., resolution 13-bit
- 4-20 mA: passive current, isolated, operating range 2,8-24 mA max., load resistance 600 Ω @ 24 Vdc, resolution 13-bit
- 0/1-5 V, 0/2-10 V: active voltage, operating range 0-11 V max., load resistance min. 2000 Ω, resolution 13-bit
Power Supply
- 16-35 Vac, 19-50 Vdc
- 85-260 Vac/dc
Display
- LED, 4 x 57 mm, Multicolour
- LED, 4 x 57 mm, Ultra Bright: Red, Green, Blue
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200 to 115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0° to +50° C
- -20° to +50° C
Protection Class
- IP 67
Case Material
- ABS
Mounting
- Polycarbonate
Case Dimensions
- 230 x 140 x 96.5 mm
