HD2108.1/HD2108.2 – Thermocouple Thermometer

Brand: Delta OHM S.R.L.

HD2108.1/HD2108.2 – Thermocouple Thermometer

Brand: Delta OHM S.R.L.

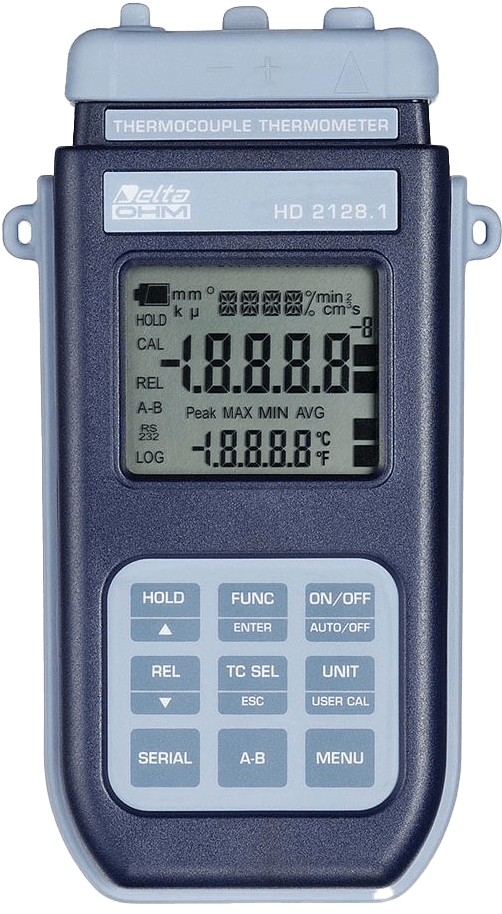

The HD2108.1 and HD2108.2 with one input and the HD2128.1 and HD2128.2 with two inputs are portable instruments with a large LCD display.

They measure the temperature using immersion, penetration, air or contact probes.

The sensor may be a thermocouple of type K, J, T, N, R, S, B or E.

Instruments HD2108.2 and HD2128.2 are data loggers, they store up to 76.000 samples the first and 38.000 couples of values the second.

These data can be transferred into a PC connected to the instrument through the serial ports RS232C and USB 2.0.

It is possible to configure the storage interval, the printing and the baud rate by the menu.

Functions Max, Min and Avg calculate maximum, minimum and average values.

Specifications

Measuring Range

  • K: -200° C to +1370° C
  • J: -100° C to +750° C
  • T: -200° C to +400° C
  • N: -200° C to +1300° C
  • R: +200° C to +1480° C
  • S: +200° C to +1480° C
  • B: +200° C to +1800° C
  • E: -200° C to +750° C

Resolution

  • 0.05° C in the range ± 199.95° C
  • 0.1° C in the remaing range

Serial Interface Type

  • RS-232C Galvanically isolated

Instrument Accuracy

  • Thermocouple K: ± 0.1° C up to 600° C, ± 0.2° C over 600° C
  • Thermocouple J: ± 0.05° C up to 400° C, ± 0.1° C over 400° C
  • Thermocouple T: ± 0.1° C
  • Thermocouple N: ± 0.1° C up to 600° C, ± 0.2° C over 600° C
  • Thermocouple R: ± 0.25° C
  • Thermocouple S: ± 0.3° C
  • Thermocouple B: ± 0.35° C
  • Thermocouple E: ± 0.1° C up to 300° C, ± 0.15° C over 300° C

Temperature Drift at 20° C

  • 0.02 %/°C

Drift After 1 Year

  • 0.1° C/year

Unit of Measurement

  • °C
  • °F
  • K
  • mV
  • mV*C

Batteries

  • Four 1.5 V type AA batteries

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Current Consumption with Instrument Off

  • 20 μA

Power Supply Main

  • 12 Vdc / 1000 mA Output main adapter

Baud Rate

  • Can be set from 1200 to 38400 baud

Data Bit

  • 8

Parity

  • None

Stop Bit

  • 1

Flow Control

  • Xon/Xoff

Serial Cable Length

  • Maximum 15 m

Models matching criteria: 4
The kit consists of one input instrument HD2108.1, 4 per 1.5V alkaline batteries, instruction manual, case and Deltalog9 software. Probes and cables have to be ordered separately.
Out of Stock
The kit consists of one input instrument HD2108.2, 4 per 1.5V alkaline batteries, instruction manual, CP23 USB cable, case and Deltalog9 software. Probes and cables have to be ordered separately.
Out of Stock
The kit consists of two inputs instrument HD2128.1, 4 per 1.5V alkaline batteries, instruction manual, case and Deltalog9 software. Probes and cables have to be ordered separately.
Out of Stock
The kit consists of two inputs instrument HD2128.2, data logger, 4 per 1.5V alkaline batteries, instruction manual, CP23 USB cable, case and Deltalog9 software. Probes have to be ordered separately.
Out of Stock
