SEM1200 Loop Splitter
Brand: Status Instruments
Images are representations only.
SEM1200 Loop Splitter

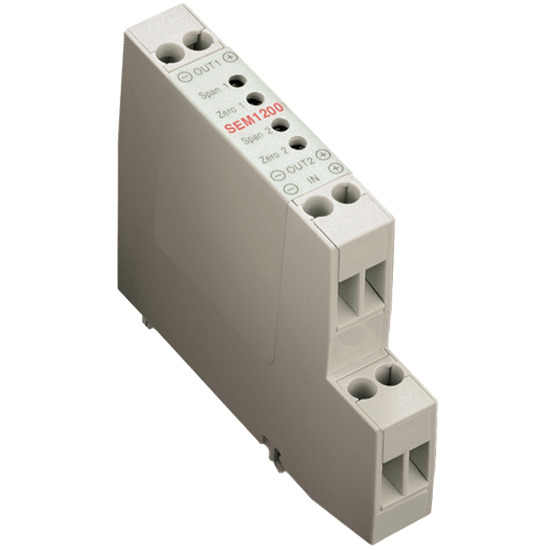

Brand: Status InstrumentsThe SEM1200 Isolator is a Dual output Isolator, providing two separate isolated (4 to 20) mA current signals from a primary loop. The output loops must be powered externally.
This isolator requires no user adjustment during commissioning, apart from an initial test, to ensure it operates correctly over its full working range.
Minor adjustments can be made to the calibration of the device by means of the two front panel accessible calibration potentiometers.
Incorrect connection in the loop will not damage the device as long as the specified maximum currents/voltages are not exceeded.
Features- Provides 2 Isolated (4 to 20) mA Outputs From 1 (4 to 20) mA Input
- High Accuracy
- Galvanic Isolation
- 12.5 mm Wide
Specifications
Brand
Accuracy
- ± 0.05 % (± 0.008 mA) of Full Range Output
Adjustment Type
- Zero & Span Adjustment
Ambient Temperature Range
- 0° to 70° C (32° to 158° F)
Approvals & Certifications
- EMC Tested to BS EN 61326
- Environment: BS EN 61010-1 Pollution Degree 2, Installation Cat II, Class I
- UL 94-VO
- VDE 0304 Part 3, Level IIIA
Electrical Connectors
- Captive Clamp Screws
Electrical Protection
- Reverse Polarity
Enclosure, Body Material
- Grey Polyamide
Humidity
- 10 to 95 % Relative Humidity, Non-Condensing
Input
- 4-20 mA - 30 mA - Max.
Isolation
- 500 Vdc (Flash Tested at 1 kV) between Port (Isolation Method, Opto Coupler/Transformer)
- Galvanically Isolated 500 Vdc Flash Tested at 1 kV
Load
- > 250 ohms for Ambients > 50° C (122° F)
Mounting
- Snap on ”Top Hat” Rail (DIN EN 50022-35)
Output
- 15 Vdc
- 2-Wire
- 4-20 mA
- Loop Voltage: 5-32 Vdc
Resistance
- Load: 1,200 ohms at Vs 30 V
- Load: 900 ohms at Vs 24 V
Response Time
- Less than 100 milliseconds to Reach 70 % of Final Value
Size
- Cable Size: Max.
Stability
- 0.01 %/°C
Voltage Drop
- 5 V
