SRS-U4 Converter Module
Brand: SIMEX sp. z o.o.
Images are representations only.

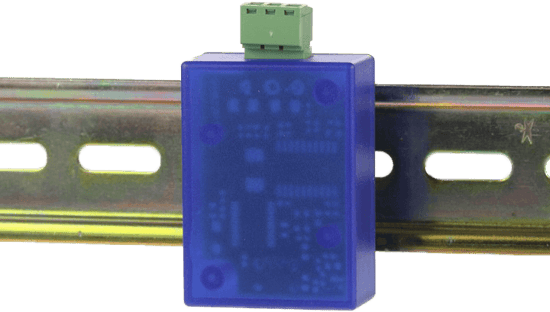

SRS-U4 Converter Module
Brand: SIMEX sp. z o.o.The SRS-U4 converter is designed to connect a USB host to slave devices equipped with RS-485 interface.
The PC with special software can be used as a host.
The SRS-U4 unit guarantees full galvanic isolation between USB and RS-485 circuits.
The converter can work with any devices equipped with RS-485 interface and contains integrated circuit which supports USB 1.1 and USB 2.0 standards.
The main purpose is connection of PC host computer with industrial data acquisition and visualization systems based on RS-485 interface.
The SRS-U4 can be also manufactured with DIN mounting adaptor.
Features- USB / RS-485 Converter Module
- 3 Signalling LEDs
- Galvanic Isolation Between USB Interface and RS-485 Lines
- Compatible with USB 3.0 Standard
- Din Rail Mounting Adaptor
Specifications
Brand
Power Supply
- 10-30 Vdc
Communication Interface
- Mini USB
Transmission Parameters
- 300…115200 bit/s
Galvanic isolation
- Between RS-485 Line and USB Interface
Operating Temperature
- 0° to +50° C
- -20° to +50° C
Case Dimensions
- 50 x 36 x 20 mm
- 50 x 36 x 39.5 mm (DIN rail mounting version)
- 61 x 36 x 20 mm (with protruding socket and plug)
- 61 x 36 x 39.5 mm (DIN rail mounting version with protruding socket and plug)
