SLN-94 Electronic Counter
Brand: SIMEX sp. z o.o.
Images are representations only.

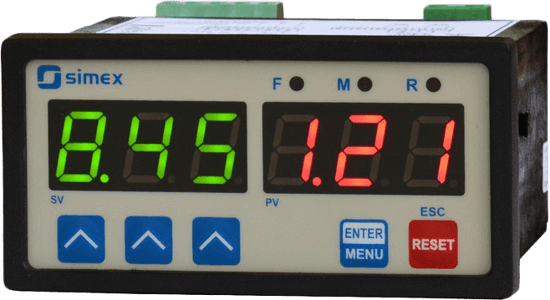

SLN-94 Electronic Counter
Brand: SIMEX sp. z o.o.The SLN-94 counter is equipped with single counting, hold, stop, clear/start inputs.
Is designed for up-down counting of pulses in 3 decades and has single program register using for programming the batcher function.
SLN-94 has two build-in relay outputs - N.O. with selectable thresholds and modes of operation.
It can be used for controlling of external devices.
The counter is prepared for cooperation with NPN as well as PNP type sensors.
Due to internal digital denouncing filter simple contactors can be used as sensors.
Additionally build-in sensor supply output: 24V DC can be used to supply contactors and some types of electronic sensors.
The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Up-down and Down-up Pulse Counter with Batching Function
- Settable Activation Threshold
- 1 Pulse Counting Input / 3 Control Inputs
- 4 Counter Reset Sources
- 2 REL / OC Outputs
- Double LED Display
- RS-485 / Modbus RTU
- Free Configuration Software S-Config
Specifications
Brand
Number of Inputs
- 1
Input Type
- Pulse
Input Levels
- Low: 0...1V, High: 10...30 V
Input Frequency
- Electronic: 10 kHz, Contact: Max. 90 Hz - Adjustable Filter
Output Type
- Open Collector: I=30 mA, U=30 Vdc, P=100 mW
- Relay I=1A, U=30 Vdc/250 Vac (cosø=1)
Measurement Method
- Electrical
- Pulse
Tryb Pracy
- Adding-Subtracting
Power Supply
- 16...35 Vac, 19...50 Vdc
- 85..260 Vac/dc
- 11,4...15 Vac/dc
Display
- LED
- Double: 3 x 13 mm (Red) + 3 x 13 mm (Green)
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200...115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0...+50° C
- -20…+50° C
Protection Class
- IP 20: Case and Connection Clips
- IP 65: Front
- Optional Integrated Frame for Panel Cut-out Sealing
Case Material
- NORYL-GFN2S E1
Mounting
- Panel
Case Dimensions
- 96 x 48 x 100 mm
