DE Platform Scale and Accessories

Brand: Kern
img-de-a13-A.png img-de-a11n-A.png DE-D_0005.png DE-D_0004.png DE-D.png
Images are representations only.

DE Platform Scale and Accessories

Brand: Kern
Request Information
Favorite
Platform Scale DE - The long lasting story of success with dust and spray protected display device.
Features
  • Platform Scale DE
    • High mobility: Battery or rechargeable battery (optional) operation, compact and flat construction and low weight make this scale ideal for use in several locations (production, warehouse, dispatch department etc.)
    • Flexible positioning of display device: e.g. free-standing or mounted to the wall (optional)
    • Display device: plastic, protection against dust and water splashes IP65
    • weighing plate: stainless steel, painted steel base
    • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
    • With the recipe function you can weigh the different ingredients of a mixture. As a check, you can also call up the total weight of all the ingredients
    • Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m², or similar
    • Note: Individual header data: the free software KERN SHM-01 can be used to print 4 header lines on the printout for printers 911-013, YKN-01, YKB-01N, YKE-01 and YKC-01 (in combination with YKI-02).
    • You can easily download the software here (unfortunately it cannot be sent out as a CD): Software full-version - http://www.kern-sohn.com/data/downloads/SW_SHM-01.zip
    • Protective working cover included with delivery
    • Watch the product film for DE - https://www.youtube.com/watch?v=6JBGywXQyrQ
  • DE-A11N Mount for Display Device for KERN DE-D and KERN DS
    • Mount to fasten the display device to the platform
    • Suitable for counting scale KERN CDS, parcel scale KERN DE and platform scale KERN DS
  • DE-A13 Wall Mount for display device for KERN DE-D
    • Suitable for parcel scale KERN DE

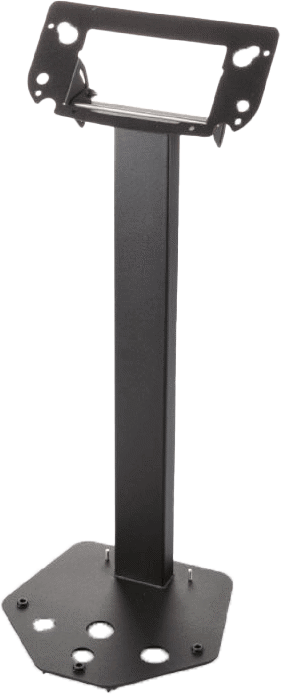

  • DE-A10 Stand to Elevate Display Device
    • Height of stand approx. 480 mm
    • Suitable for Platform scales KERN DE and KERN DS (for models with weighing plate size W×D×H 308×318×75 mm and 450×350×115 mm)

Specifications

Brand

Weighing Capacity (Max)

  • 3 - 300 kg

Readability (d)

  • 0.2 - 100 g

Repeatability

  • 0.2 - 100 g

Linearity

  • 0.8 - 300 g

Mount Dimensions

  • 200 mm x 100 mm x 40 mm

Stand Construction

  • Dimensions (WxDxH): 500 mm x 100 mm x 50 mm
  • Height of Stand: 48 cm

Displaying prices & availability for Ohio, United States in EUR. Change location or currency.

Models matching criteria: 26
DE 120K10A
Platform Scale view more
  • Weighing Capacity (Max): 120 kg
  • Readability (d): 10 g
  • Repeatability: 10 g
  • Linearity: 30 g
Out of Stock
DE 12K1A
Platform Scale view more
  • Weighing Capacity (Max): 12 kg
  • Readability (d): 1 g
  • Repeatability: 1 g
  • Linearity: 3 g
Out of Stock
DE 150K20D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 60 kg | 150 kg
  • Readability (d): 20 g | 50 g
  • Repeatability: 20 g | 50 g
  • Linearity: 60 g | 150 g
Out of Stock
DE 150K20DL
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 60 kg | 150 kg
  • Readability (d): 20 g | 50 g
  • Repeatability: 20 g | 50 g
  • Linearity: 60 g | 150 g
Out of Stock
DE 150K20DXL
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 60 kg | 150 kg
  • Readability (d): 20 g | 50 g
  • Repeatability: 20 g | 50 g
  • Linearity: 60 g | 150 g
Out of Stock
DE 150K2D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • High-Resolution Display
  • Weighing Capacity (Max): 60 kg | 150 kg
  • Readability (d): 2 g | 5 g
  • Repeatability: 2 g | 5 g
  • Linearity: 8 g | 20 g
Out of Stock
DE 150K2DL
Parcel Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • High-Resolution Display
  • Weighing Capacity (Max): 60 kg | 150 kg
  • Readability (d): 2 g | 5 g
  • Repeatability: 2 g | 5 g
  • Linearity: 8 g | 20 g
Out of Stock
DE 15K0.2D
Parcel Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • High-Resolution Display
  • Weighing Capacity (Max): 6 kg | 15 kg
  • Readability (d): 0.2 g | 0.5 g
  • Repeatability: 0.2 g | 0.5 g
  • Linearity: 0.8 g | 2 g
Out of Stock
DE 15K2D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 6 kg | 15 kg
  • Readability (d): 2 g | 5 g
  • Repeatability: 2 g | 5 g
  • Linearity: 6 g | 15 g
Out of Stock
DE 24K2A
Platform Scale view more
  • Weighing Capacity (Max): 24 kg
  • Readability (d): 2 g
  • Repeatability: 2 g
  • Linearity: 6 g
Out of Stock
DE 300K50D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 150 kg | 300 kg
  • Readability (d): 50 g | 100 g
  • Repeatability: 50 g | 100 g
  • Linearity: 150 g | 300 g
Out of Stock
DE 300K50DL
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 150 kg | 300 kg
  • Readability (d): 50 g | 100 g
  • Repeatability: 50 g | 100 g
  • Linearity: 150 g | 300 g
Out of Stock
DE 300K5DL
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • High-Resolution Display
  • Weighing Capacity (Max): 150 kg | 300 kg
  • Readability (d): 5 g | 10 g
  • Repeatability: 5 g | 10 g
  • Linearity: 20 g | 40 g
Out of Stock
DE 35K0.5D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • High-Resolution Display
  • Weighing Capacity (Max): 15 kg | 35 kg
  • Readability (d): 0.5 g | 1 g
  • Repeatability: 0.5 g | 1 g
  • Linearity: 2 g | 4 g
Out of Stock
DE 35K5D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 15 kg | 35 kg
  • Readability (d): 5 g | 10 g
  • Repeatability: 5 g | 10 g
  • Linearity: 15 g | 30 g
Out of Stock
DE 35K5DL
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 15 kg | 35 kg
  • Readability (d): 5 g | 10 g
  • Repeatability: 5 g | 10 g
  • Linearity: 15 g | 30 g
Out of Stock
DE 60K10D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 30 kg | 60 kg
  • Readability (d): 10 g | 20 g
  • Repeatability: 10 g | 20 g
  • Linearity: 30 g | 60 g
Out of Stock
DE 60K10DL
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 30 kg | 60 kg
  • Readability (d): 10 g | 20 g
  • Repeatability: 10 g | 20 g
  • Linearity: 30 g | 60 g
Out of Stock
DE 60K1D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • High-Resolution Display
  • Weighing Capacity (Max): 30 kg | 60 kg
  • Readability (d): 1 g | 2 g
  • Repeatability: 1 g | 2 g
  • Linearity: 4 g | 8 g
Out of Stock
DE 60K1DL
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • High-Resolution Display
  • Weighing Capacity (Max): 30 kg | 60 kg
  • Readability (d): 1 g | 2 g
  • Repeatability: 1 g | 2 g
  • Linearity: 4 g | 8 g
Out of Stock
DE 60K5A
Platform Scale view more
  • Weighing Capacity (Max): 60 kg
  • Readability (d): 5 g
  • Repeatability: 5 g
  • Linearity: 15 g
Out of Stock
DE 6K0.5A
Platform Scale view more
  • Weighing Capacity (Max): 6 kg
  • Readability (d): 0.5 g
  • Repeatability: 0.5 g
  • Linearity: 1.5 g
Out of Stock
DE 6K1D
Platform Scale view more
  • Dual-range balance (D=Dual): Switches from readout d1 to readout d2 automatically
  • Weighing Capacity (Max): 3 kg | 6 kg
  • Readability (d): 1 g | 2 g
  • Repeatability: 1 g | 2 g
  • Linearity: 3 g | 6 g
Out of Stock
DE-A11N
Mount to Fasten the Display Device to the Platform view more
  • Mount for display device for KERN DE-D and KERN DS
Out of Stock
DE-A10
Column to Elevate the Display Device for Series DE view more
  • Dimensions (W×D×H): 500 mm x 100 mm x 50 mm
  • Height of Stand: 48 cm
Out of Stock
DE-A13
Wall Mount for Display Device for KERN DE-D
Out of Stock
