SEM1750 Signal Conditioner

Brand: Status Instruments

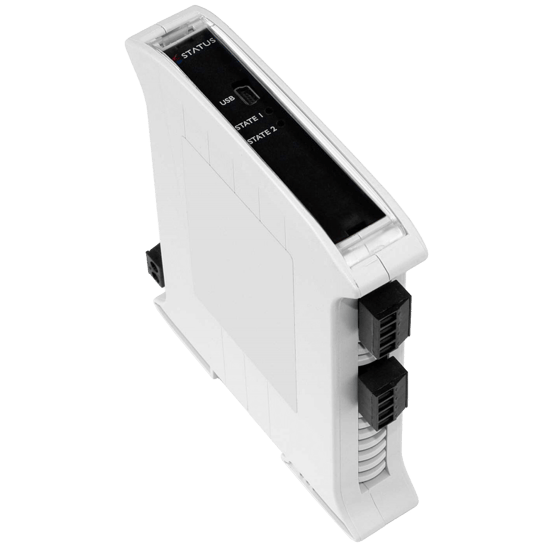

Status Instruments Signal Conditioner, SEM1750
Images are representations only.

SEM1750 Signal Conditioner

Brand: Status Instruments
Favorite
The SEM1750 is a cost effective dual channel signal conditioner that accepts a bipolar voltage or current signal and isolates to provide ranged industrial process output signals such as (0-20) mA, (4-20) mA, (0-10) V, (1-5) Vdc.

The SEM1750 is configured using our easy to use configuration software USB Speed Link.

USB speed link offers the user two levels of configuration: a basic current/voltage signal converter where the device can be set as dual channel or signal splitter, or for more advanced applications, a configuration menu offering a wide range of user set functions, including process scaling and profiling, maths functions, signal damping, sensor linearisation and signal preset for diagnostics purposes.
Features
  • Dual Channel Voltage Or Current (Active/Passive)Inputs and Outputs
  • 5 Port Isolation To 3.75Kv
  • Can Be Configured As An Active Signal Splitter
  • User Selectable Maths Functions On Each Output Channel
  • Signal Linearisation
  • Signal Simulate Function For Diagnostics

Specifications

Brand

Accuracy

  • ± 5 µA or (mA Out/2,000), whichever is greater - Output Current (Channel 1 & 2)
  • ± 5 mV - Output Voltage (Channel 1 & 2)
  • Range -22 to 22 mA: ± 5 µA - Input Current (Channel 1 & 2)
  • Range -22 to 22 V: ± 5 mV - Input Voltage (Channel 1 & 2)
  • Range -50 to 50 mA: ± 10 µA - Input Current (Channel 1 & 2)
  • Range -50 to 50 V: ± 10 mV - Input Voltage (Channel 1 & 2)

Approvals & Certifications

  • BS EN 61010-1

Communication

  • USB

Damping Adjustment

  • 0 to 3,600 seconds, Independent Rise & Fall Delays Per 1 V or 1 mA Output Change

Electrical Connectors

  • Screw Terminal

Electrical Protection

  • Internal Fuse (0.5 A)
  • Overvoltage Protection at 250 V

Humidity

  • 10 to 90 % Relative Humidity, Non-Condensing

Input

  • ± 50 mA (Current)
  • ± 50 Vdc (Voltage)
  • Transmitter Supply: 22 Vdc at 25 mA

Input Impedance

  • 1 Megaohm (Voltage)
  • 10 ohms (Current)

Isolation

  • 3,750 Vdc - Isolation Test Voltage (Input Output Ports)
  • 4,000 Vac - Isolation Test Voltage (Supply to Input/Output)

Linearization

  • User Linearization: 22-Segment Input to Process Variable
  • User Linearization: 3 to 22-Segment Input to Process Range

Load

  • Maximum
  • Output Voltage Load: Min. 1 Kiloohm (Compensation Provided)

Operating Temperature

  • -30° to 70° C (-22° to 158° F)

Output

  • 0-10 V - Voltage Working Range
  • 0-20 mA - Current Working Range
  • Current Sink: Supply Voltage 10-28 Vdc
  • Maximum

Power

  • 3 W at Full Output Current

Power Supply Effect

  • 0.2 µA/V (Sink Mode) - Loop Voltage Effect

Stability

  • 0.02 % of Full Scale/°C

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Supply Voltage

  • 20-240 Vac, 50/60 Hz
  • 20-240 Vdc

System Requirements

  • Windows® XP

Thermal Drift

  • ± 1 mV/°C - Output Voltage
  • 1 µA/°C - Output Current

Turn-On Time

  • 4 seconds

Update Time

  • 140 milliseconds (16-bits Full Range)
  • 420 milliseconds (18-bits Full Range)
  • 70 milliseconds (14-bits Full Range)
  • Warm-Up Time: 1 Minute to Full Accuracy

Voltage

  • Maximum
  • Working Voltage: 253 Vac
