KGP Industrial Platform with Digital Weighing Transmitter

Brand: Kern
img-kgp-A.png img-ykv-M1.jpg
Images are representations only.

KGP Industrial Platform with Digital Weighing Transmitter

Brand: Kern
Request Information
Favorite

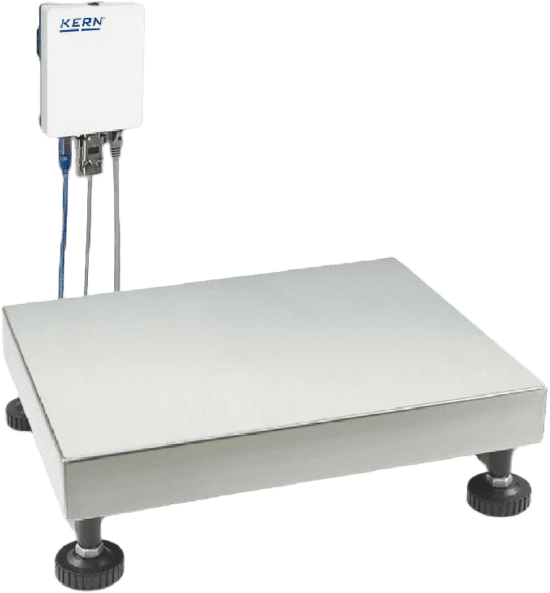

Robust industrial platform scale with digital scale transmitter, ideal for varied range of applications for Industry 4.0.
Features
  • With this combination of platform (KERN KFP V20 IP65) and A/D converter box (KERN YKV-01) your weighing processes are ready for the requirements of Industry 4.0. Simply install the platform, connect the A/D converter box to the network and start weighing
  • For rapid transfer of weighing data to connected networks, computers, etc.
  • USB- and RS-232 Data interface standard
  • Transfer formats are freely configurable
  • Many interface variants available:
    • WLAN interface, KERN YKV-01
    • Bluetooth data interface, KERN YKV-01
    • Other interfaces on request
    • A/D converter box with Ethernet data interface as standard on request
  • Functions: Weighing, Tare off
  • Internal Resolution 16 million divisions
  • Measuring frequency 10 Hz
  • Easy configuration using the software supplied
  • KERN YKV-01: Robust plastic die-cast housing
  • KERN YKV-01: Suitable for wall mounting and DIN track mount
  • Included in the scope of supply:
    • Industrial Platform KFP
    • A/D converter box KERN YKV-01
    • Software Balance Connection for adjusting and managing the KERN YKV-01, for large-format display of the values collected on the PC as well as transfer of this data to other apps and programs

Specifications

Brand

Weighing Capacity (Max)

  • 6 - 300 kg

Readability (d)

  • 0.2 - 10 g

Weighing Plate

  • 230 mm x 230 mm
  • 300 mm x 240 mm
  • 400 mm x 300 mm
  • 500 mm x 400 mm
  • 650 mm x 500 mm

Displaying prices & availability for Ohio, United States in EUR. Change location or currency.

Models matching criteria: 11
KGP 100K-3
Industrial Balance view more
  • Weighing Capacity (Max): 150 kg
  • Readability (d): 5 g
  • Weighing Plate: 500 mm x 400 mm
Out of Stock
KGP 100K-3L
Industrial Balance view more
  • Weighing Capacity (Max): 150 kg
  • Readability (d): 5 g
  • Weighing Plate: 650 mm x 500 mm
Out of Stock
KGP 10K-4
Industrial Balance view more
  • Weighing Capacity (Max): 15 kg
  • Readability (d): 0.5 g
  • Weighing Plate: 300 mm x 240 mm
Out of Stock
KGP 10K-4L
Industrial Balance view more
  • Weighing Capacity (Max): 15 kg
  • Readability (d): 0.5 g
  • Weighing Plate: 400 mm x 300 mm
Out of Stock
KGP 300K-2L
Industrial Balance view more
  • Weighing Capacity (Max): 300 kg
  • Readability (d): 10 g
  • Weighing Plate: 650 mm x 500 mm
Out of Stock
KGP 30K-3
Industrial Balance view more
  • Weighing Capacity (Max): 30 kg
  • Readability (d): 1 g
  • Weighing Plate: 300 mm x 240 mm
Out of Stock
KGP 30K-3L
Industrial Balance view more
  • Weighing Capacity (Max): 30 kg
  • Readability (d): 1 g
  • Weighing Plate: 400 mm x 300 mm
Out of Stock
KGP 60K-3
Industrial Balance view more
  • Weighing Capacity (Max): 60 kg
  • Readability (d): 2 g
  • Weighing Plate: 400 mm x 300 mm
Out of Stock
KGP 60K-3L
Industrial Balance view more
  • Weighing Capacity (Max): 60 kg
  • Readability (d): 2 g
  • Weighing Plate: 500 mm x 400 mm
Out of Stock
KGP 6K-4
Industrial Balance view more
  • Weighing Capacity (Max): 6 kg
  • Readability (d): 0.2 g
  • Weighing Plate: 230 mm x 230 mm
Out of Stock
KGP 6K-4L
Industrial Balance view more
  • Weighing Capacity (Max): 6 kg
  • Readability (d): 0.2 g
  • Weighing Plate: 300 mm x 240 mm
Out of Stock
