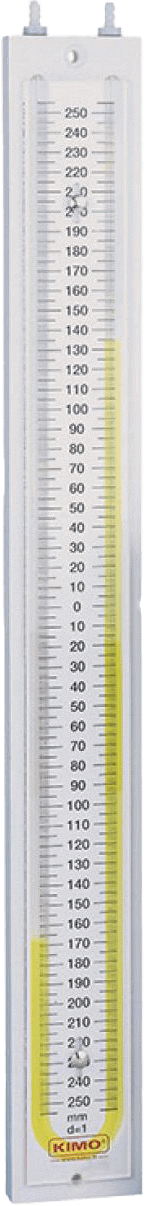

GF Series Vertical Liquid Column Manometers

Brand: Sauermann Group

GF Series Vertical Liquid Column Manometers

Brand: Sauermann Group
Kimo's GF range of vertical liquid column manometers check for pressure in gas networks.
Features
  • "U"- shaped column for measuring consecutively positive and negative pressures
  • Measurement by addition of values read on each column
  • Possibility of resisting static pressures over 10 bars
  • For fixed or portable use
  • Zero adjustment by moving the slide strip
  • Supplied with bottle of liquid, two screws and two rawlplugs

Specifications

GF 500 Differential Pressure

  • 250-0250 mmCE
  • 25-0-25 mbar

GF 1000 Differential Pressure

  • 500-0-500 mmCE
  • 50-0-50 mbar

Parameters

  • Differential pressure

Manometer Type

  • Vertical liquid column manometer

Manometric Liquid

  • VF1 liquid, density 1

Maximum Static Pressure

  • 14 bars

Operating Temperature

  • -30° to 60° C
