MT Series Inclined Liquid Column Manometers
Brand: Sauermann Group
Images are representations only.

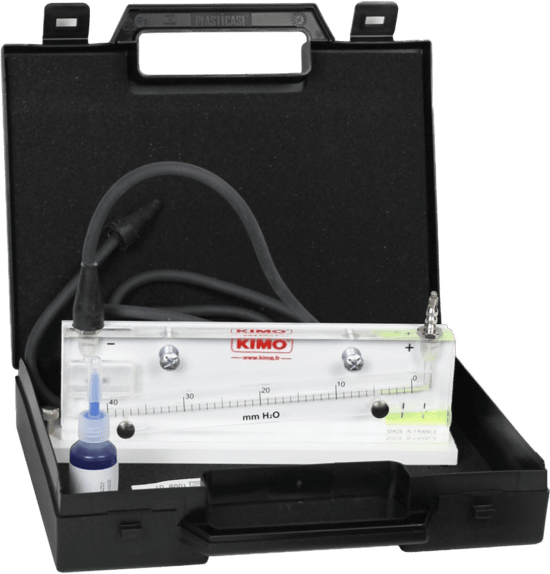

MT Series Inclined Liquid Column Manometers
Brand: Sauermann GroupKimo's MT range of inclined liquid column portable manometers are recommended for those in the heating trade for checking pressures in chimney flues, combustion chambers, filters etc.
Features- Safety reservoir enabling momentanes overshooting of the scale
- Zero adjustment by moving the slide strip
- Integrated spirit level for adjusting horizontality
- Equipped with valve connectors, magnetic fixations, support with base plate
- Can be used for measuring air velocity with Pitot tube
- Supplied with connecting sleeves, a bottle of VOLT 1 S liquid, and a travelling case
Specifications
Brand
MT 40 Differential Pressure
- 0-40 mmCE
Parameters
- Differential pressure
Manometer Type
- Inclined liquid column manometer
Manometric Liquid
- VOLT 1S, density 1.86 at 20° C
Maximum Static Pressure
- 6 bars
Reservoir Capacity
- 20 ml
Operating Temperature
- -30° to 60° C
