KM Series Portable Manometers With Vertical Liquid Column
Brand: Sauermann Group
Images are representations only.

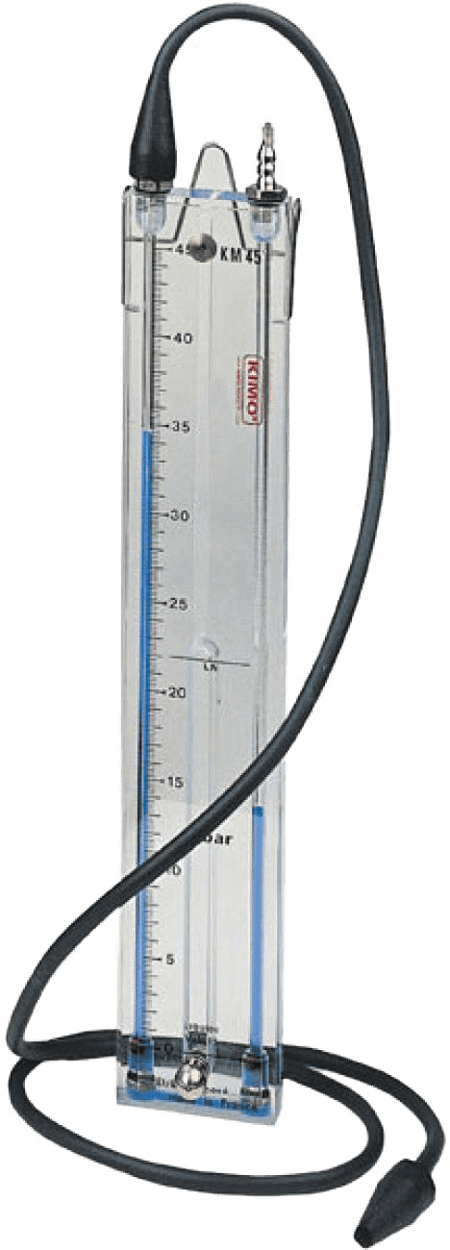

KM Series Portable Manometers With Vertical Liquid Column
Brand: Sauermann GroupKimo's KM series are portable manometers with vertical liquid columns.
They are easy to carry, measure low pressure in gas networks and come with a bottle of VOLT.1S liquid.
Features- U- shaped column for pressure and depression measurement
- Direct read-off by moving the graduated slide strip
- Safety valves actuation for momentaneous overshooting of the scale
- Fitted with valve connectors and mounting hook
- Comes with connection sleeves, a bottle of VOLT.1S liquid and carrying case
Specifications
Brand
KM 45 Differential Pressure
- 0-45 mbar
Parameters
- Differential pressure
Manometer Type
- Vertical liquid column manometer
Manometric Liquid
- VOLT 1S, density 1.86 at 20° C
Maximum Static Pressure
- 8 bars
Operating Temperature
- -30° to 60° C
