DM670TM Temperature Gauge With Data Logging, Dual Alarm & Messaging
Brand: Status Instruments
Images are representations only.
DM670TM Temperature Gauge With Data Logging, Dual Alarm & Messaging

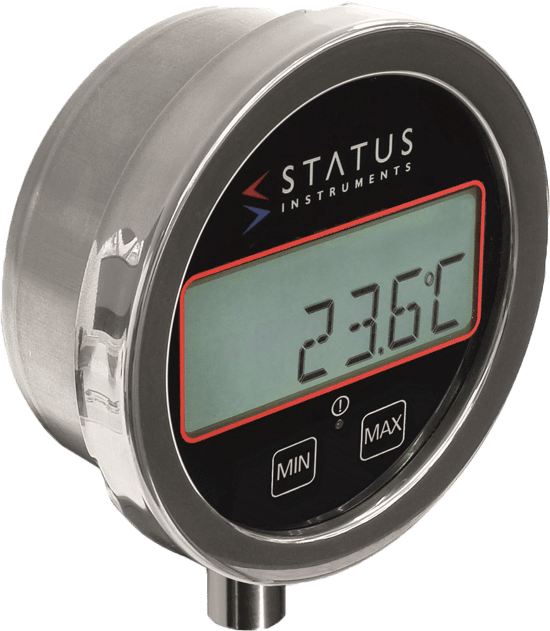

Brand: Status InstrumentsThe DM670TM large digit temperature gauge accepts RTD or Thermocouple temperature sensors and display the sensor temperature in °C or °F on a 6-digit LCD display.
Additional to the messages, the user may select an alert-event to occur when the temperature is within a band.
The two changeover relays can be used together with the messaging and alert to provide switching at user set switch points.
In addition to this, on-board datalogging is also available to record process details up to 5000 points.
Features- Accepts A PT100 Or Thermocouple Temperature Probe
- Stainless Steel Housing
- Battery Powered
- USB And NFC Interface
- Alarm Relays / User Set Display Messages
- 5000 Point Data Logger
Specifications
Brand
Update Rate
- 5 seconds
Relay Response Time
- < 10 seconds
Battery
- 2 x (AA 1.5 V alkaline) or (AA 1.5 V lithium)
Battery Life
- 1 year minimum
Ambient Temperature
- Operating/storage (-15° to 40) °C (Alkaline)
- Operating/storage (-25° to 60) °C (Lithium Energizer L91)
Ambient Humidity
- Operating/storage (10 to 90) %RH non-condensing
Protection
- IP65, cable/probe entries must be sealed to IP65 to maintain
USB Configuration Ambient
- (10 to 30) °C
Enclosure
- Stainless steel, side entry for sensor/probe
Front bezel Diameter
- 113 mm
Weight (approximate)
- 540 g
Input Sensor
- Two-part screw connector
Output Relays
- 2 x Two-part screw connectors
USB Connection
- USB Mini B socket
EMC
- BS EN 61326
- Note - Sensor input wires to be less than 3 m to comply
Ingress Protection
- BS EN 60529
RoHS
- Directive 2011/65/EU
