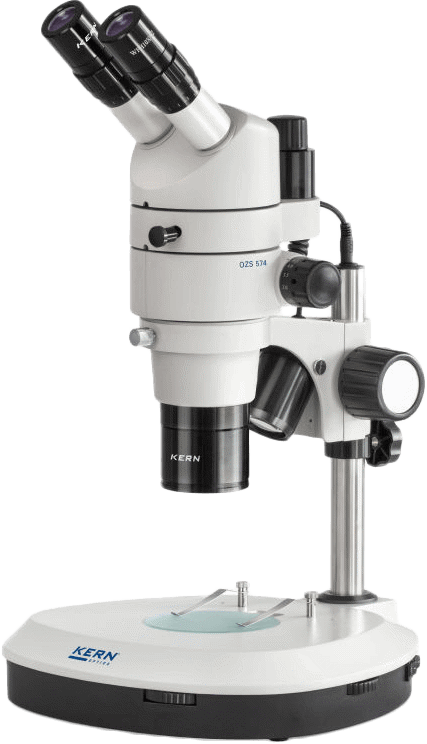

OZS Stereo Zoom Microscope
Brand: Kern
Images are representations only.
OZS Stereo Zoom Microscope
Brand: KernHigh-quality parallel optics for the best images, depth of field and contrast - with extra large zoom range.
Features- The devices in the KERN OZS-5 series are special, high-quality stereo zoom microscopes with parallel optics and an above-average zoom range for demanding analyses
- The KERN OZS-5 series is available as a strong, continuously adjustable 3 W LED incident and transmitted light variant for the very best illumination of your sample or as a variant without illumination
- The parallel optical system is a high-quality optical system and provides excellent images with the best contrast, colour and depth of field with fatigue-free working.
- Refocusing is also only necessary in very few cases when magnifying the zoom
- The exceptionally large, adjustable magnification range from 8 to 80 times magnification gives you continuous zoom for the views you need
- As standard, the models of the KERN OZS-5series are trinocular and are therefore equipped for connecting a camera for documentation purposes and for quality reports
- These models are particularly flexible due to the modular construction, the pillar stand as well as the powerful, longlife LED incident and transmitted illumination which can be integrated as an option
- A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
- A C-mount adapter is required to connect a camera. You can select this adapter from the following model outfit list
Specifications
Brand
Optical System
- Parallel Optics
- Brightness Adjustable (Separate)
- Dioptre Compensation both Sides
Lens Barrel
- 45° Tilt
Magnification Ratio
- 10:1
Light Distribution
- 50:50
Eye Distance
- 52.0 - 76.0 mm
Overall Dimensions W×D×H
- 305 mm x 300 mm x 510 mm
Net Weight
- Approximately 5.7337 kg
Tube
- Trinocular
Eyepiece
- HWF 10x Ø 22.0 mm
Field of View
- Ø 27.5 mm - 2.8 mm
Objective Zoom
- 0.8x - 8x
Stand
- Pillar
Illumination
- 3 W LED (Transmitted Light), 3 W LED (Reflected Light)
Displaying prices & availability for Ohio, United States in EUR. Change location or currency.
Models matching criteria: 2
Out of Stock
- Scope of Application
- In Vitro Fertilisation, Detection of Parasites, Zoology and Botany, Section, Quality Control, Electronics and Semiconductor Industry, Assembly and Repair
- Applications/Samples
- Samples with Focus on Three-Dimensional, Zoom with Variable Magnification (Depth, Thickness), e.g. Insects, Seeds, Circuit Boards, Components
