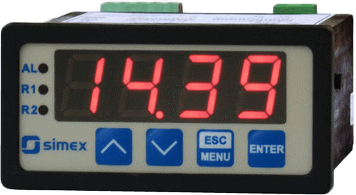

SWS-73 BCD/RS-485 Meter
Brand: SIMEX sp. z o.o.The SWS-73 is a simple digital panel indicator intended for displaying any numerical values and characters defined by user - in SLAVE mode only, sent from the master device over the RS-485 serial interface link.
The displayed value may be collected from other device - in MASTER mode. The display brightness can be adjusted in 8 steps.
The 24V DC / 100 mA output is designed to supply measuring transducers, and the RS-485 port enables data transmission in production process monitoring systems.
Modbus RTU protocol is used to communication with device.
The indicator can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
Features- Indicator in a Small Case
- Two-coloured Display: 4-digit, IP 40
- Optionally 6-digit Display, IP 65
- RS-485 / Modbus RTU
- MASTER / SLAVE
- Power Supply Output: 24V DC
- Display Brightness Adjustable in 8 Steps
- Free Configuration Software S-Config
Specifications
Brand
Input Type
- No Input
Output Type
- No Output
Power Supply
- 16-35 Vac, 19-50 Vdc
- 85-260 Vac/dc
- 11,4...15 Vac/dc
Display
- LED, 4 x 13 mm, Two-coloured
- LED, 6 x 9 mm, Red
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200 to 115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0° to +50° C
- -20° to +50° C
Protection Class
- IP 20: Case and Connection Clips
- IP 40: Front
- IP 65: Front
- Optional Integrated Frame for Panel Cut-out Sealing
Case Material
- NORYL-GFN2S E1
Mounting
- Panel
Case Dimensions
- 72 x 36 x 97 mm
