SEM1605/P Temperature Transmitter

Brand: Status Instruments

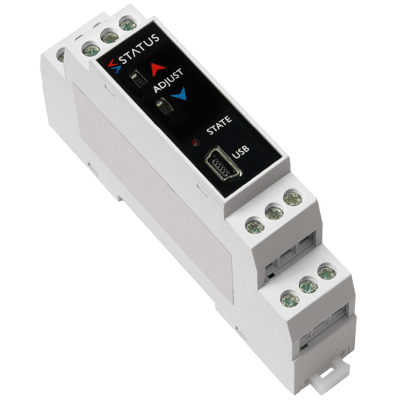

Status Temperature Transmitter, SEM1605/P
Images are representations only.

SEM1605/P Temperature Transmitter

Brand: Status Instruments
Favorite
The SEM1605P is the next generation DIN rail mounted temperature transmitter from Status Instruments.

It has been designed to accept most common RTD temperature sensor inputs and provide the user with a standard two wire (4-20) mA output signal. All temperature ranges are linear to temperature.

Designed for ease of use, our latest USB interface is fitted for quick and easy configuration. Just connect a standard USB cable between the SEM1605P and your PC.

Our free configuration software, will guide you through any changes you wish to make.

To further help save time, the SEM1605P does not need to be wired to a power supply during the configuration process, it is powered via the USB interface from your PC.
Features
  • RTD Temperature Transmitter
  • PT100, Cu100, Cu53, Ni100, Ni120
  • (4 to 20) mA Two Wire Output
  • Calibration and Output Trim Without a PC
  • View Live Data On An Android Phone or Tablet

Specifications

Brand

Accuracy

  • (mA Output/2,000) or 5 µA whichever is greater
  • 0.2° C (0.36° F) + (0.05 % of Reading)
  • RTD: ± 10° C (± 18° F)

Ambient Temperature Range

  • -30° to 70° C (-22° to 158° F)

Approvals & Certifications

  • CE
  • EMC: EN BS 61326 Industrial Emissions
  • IEC

Cable Length

  • 0.008 ft (0.0025 m) - max.

Communication

  • Baud Rate: 19,200 bit/sec
  • USB Port

Display

  • Red LEDs

Enclosure Finish

  • Grey

Enclosure, Body Material

  • Polyamide 6.6

Environmental Protection

  • IP65

Input

  • 20 mA
  • 4 mA
  • 4-20 mA
  • 660 μA - Excitation

Mounting

  • DIN Rail Mounted 6 Terminal

Output

  • ± 0.2 μA/V - Loop Effect
  • 3.8 - 21.5 mA - Range Extremes
  • 4-20 mA, 2-Wire

Resistance

  • 0 to 20 ohms - Lead Resistance

Response Time

  • 1 second

Sensor Protection

  • Burn-Out

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire

Sensor, Probe Type

  • Cu100
  • Cu53
  • Ni100
  • NI120
  • Pt100
  • RTD

Stability

  • ± 0.02° C/°C - Thermal Stability
  • ± 2 μA/°C - Thermal Stability

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Supply Voltage

  • 10-30 Vdc

Temperature Range

  • -200° to 850° C (-328° to 1,562° F)

Turn-On Time

  • 8 seconds

Update Time

  • 0.5 second
  • Warm-Up Time: 1 Minute
