Images are representations only.

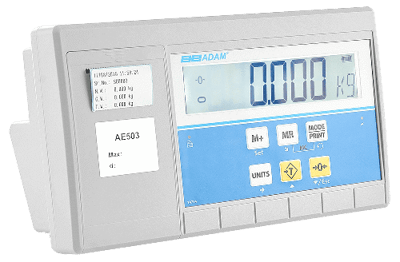

AE 503 Label Printing Indicator
Brand: Adam Equipment
Strong ABS construction and an integrated label printer enhance functionality for the AE 503 label printing indicator, making it an ideal option for weighing, parts counting, percentage weighing, dynamic weighing, check counting, checkweighing and averaging.
A large, easy-to-read backlit LCD screen features 1.3-inch/34mm-tall digits and symbols to show over, under or within limits during checkweighing. A sealed, color-coded keypad allows quick and easy configuration.
Using the built-in printer, add barcodes, QR codes, pictures and custom logos to the 50 mm-wide printed labels
FeaturesHardware
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- RS-232 interface is available to provide speedy connection to computers
- Rugged construction stands up to industrial use
- Built in printer can print weight, QR codes, bar codes and labels in numerous languages
Software
- Zero-tracking feature ensures display returns to zero reading
- Parts counting optimization automatically refines piece weight as parts are added
- Checkweighing with audible alarm
- External calibration allows for verification and adjustment with weights
- Quick and easy configuration using the keypad
- User-selectable scale division
Display
- Vivid, backlit LCD easily visible in any lighting conditions
- Programmable backlight can be set to "always on," "always off" or "light only when weighing"
Power
- Rechargeable battery included for operation almost anywhere
- Programmable auto power-off to save energy
Displaying prices & availability for Virginia, United States in EUR. Change location or currency
AE 503 Label Printing Indicator
Out of Stock
Specifications
Brand
Capacity
- Selectable
Resolution
- 1:60,000
Exciataion Voltage
- 5 Vdc
Sensitivity
- 0.02 uv/e
Loadcells
- 8
Interface
- RS-232
Zero Range
- ± 20 %
Signal Range
- -20 to 20 mV
Stabilization Time
- 2 s
Calibration
- External Calibration
Display
- Backlit LCD with 1.3”/ 34 mm -High Digits
Power Supply
- 12 Vdc 3 A Aadapter /Internal Rechargeable Battery
Operating Temperature
- 0° to 40° C (32° to 104° F)
Housing Material
- ABS Plastic
- Weighing
- Parts Counting
- Percentage Weighing
- Check Counting
- Averaging
- Barcode / Label Printing
- Checkweighing
- Dynamic / Animal Weighing
- Accumulation
- Display Hold
- Peak Hold
