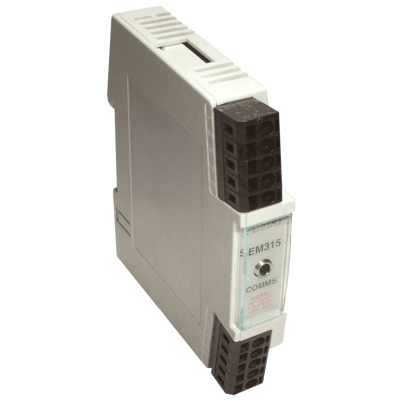

SEM315 Temperature Transmitter

Brand: Status Instruments
Does not ship to United States

The SEM315 has the HART communications protocol which allows the user to quickly and easily down-load information or interrogate the device enabling the following:
  • Simple re-ranging of sensor type and range
  • Easy on site re-calibration
  • Operation with proprietary software packages such as AMS Plant Web TM and Cornerstone TM
  • Remote configuration on the (4-20) mA loop with a hand held communicator or with a PC & HART modem
  • Online Digital communication concurrent with a (4-20) mA Analog signal
Features
  • HART 5,6,7 Compatible
  • Dual RTD, Thermocouple, Potentiometer and mV Inputs
  • Maths Functions Between Inputs
  • Isolated Input to Output 4kV DC Flash Tested
  • SIL Hardware Safety Integrity

Specifications

Accuracy

  • ± 10 µV ± 0.07 % of Reading
  • ± 5 µA
  • 0.01 % of Full Range Input ± 0.07 % of Reading
  • 0.04 % of Full Range Input ± 0.04 % of Reading or 0.5° C (0.9° F) whichever is greater
  • 0.1 % of Full Range Input

Approvals & Certifications

  • EMC BS EN 61326

Communication

  • HART

Current

  • RTD Excitation Current: 300-500 µA

Enclosure, Body Material

  • ABS SEI UL 94-V0

Humidity

  • 0 to 95 % Relative Humidity, Non-Condensing

Input

  • -10 to 75 mV
  • High: 20.5 mA
  • Low: 3.8 mA

Isolation

  • Input/Output Breakdown Isolation: 500 Vac

Linearization

  • RTD: BS 1904
  • RTD: BS EN 60751
  • RTD: DIN 43760
  • RTD: JISC 1604
  • Thermocouple: BS 4937
  • Thermocouple: BS EN 60584-01
  • Thermocouple: IEC 584-1

Mounting

  • DIN Rail

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Output

  • 4-20 mA
  • Maximum
  • Minimum 3.75 mA

Output Load

  • Maximum

Power Supply Effect

  • Supply Voltage Effect: 0.2 µA/V

Resistance

  • Input Sensors: 18 to 390 ohms
  • Maximum

RTD Type

  • 3-Wire Potentiometer
  • Ni100
  • Pt100

Sensor Protection

  • Burn-Out

Sensor, Probe Connection

  • 2-Wire
  • 3-Wire
  • 4-Wire

Sensor, Probe Type

  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • L Thermocouple
  • N Thermocouple
  • RTD
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple

Span - Minimum

  • 100° C (212° F)
  • 25° C (77° F)
  • 5 mV
  • 5 % of Full Range Input
  • 50° C (122° F)

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Supply Voltage

  • 10-40 Vdc

Temperature Effect

  • Cold Junction: ± 0.5° C (± 0.9° F) Tracking 0.05° C/°C Range -40° to 85° C (-40° to 185° F)

Temperature Range

  • Cold Junction: -40° to 85° C (-40° to 185° F)
  • Thermocouple: -200° to 1,370° C (-328° to 2,498° F)

Thermal Drift

  • 1 µA/°C
  • Span: 0.01 %/°C
  • Zero: 0.005 % of Span/°C
  • Zero: 0.008° C/°C

Time Constant

  • 0.5 second (to 90 % of Final Value)

Update Time

  • Warm-Up: 120 seconds to Full Accuracy
