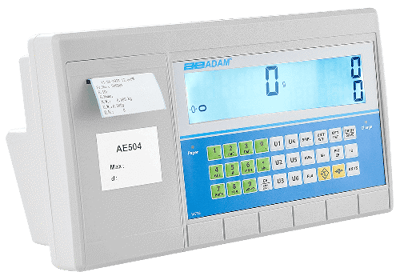

AE 504 Advanced Label Printing Indicator

Brand: Adam Equipment

A sturdy, lightweight design with a sealed keypad, an internal rechargeable battery and the convenience of a built-in printer make the AE 504 advanced label printing indicator a great choice for demanding industrial settings and shipping and receiving areas. In addition to numerous weighing and counting applications, add barcodes, QR codes, pictures and custom logos to the 50 mm-wide printed labels with the indicator’s integrated printer.

The large, easy-to-read backlit LCD screen features 0.9-inch/22mm-tall digits, while a color-coded numeric keypad allows quick and easy selection from 1,000+ PLUs or to manually enter tare weights, unit weights and sample sizes.
  • Color-coded keys facilitate quick recognition of the most frequently used buttons
  • RS-232 interface is available to provide speedy connection to computers
  • Rugged construction stands up to industrial use
  • Built in printer can print weight, QR codes, bar codes and labels in numerous languages
  • Zero-tracking feature ensures display returns to zero reading
  • Parts counting optimization automatically refines piece weight as parts are added
  • Checkweighing with audible alarm
  • External calibration allows for verification and adjustment with weights
  • Quick and easy configuration using the keypad
  • User-selectable scale division
  • Vivid, backlit LCD easily visible in any lighting conditions
  • Programmable backlight can be set to "always on," "always off" or "light only when weighing"
  • Rechargeable battery included for operation almost anywhere
  • Programmable auto power-off to save energy

AE 504 Advanced Label Printing Indicator
Out of Stock



  • Selectable


  • 1:60,000

Exciataion Voltage

  • 5 Vdc


  • 0.02 uv/e


  • 8


  • RS-232

Zero Range

  • ± 20 %

Signal Range

  • -20 to 20 mV

Stabilization Time

  • 2 s


  • External Calibration


  • Backlit LCD with 0.87” and 0.63”/ 22 mm -High Digits and 16 mm -High Digits

Power Supply

  • 12 Vdc 3 A Aadapter /Internal Rechargeable Battery

Operating Temperature

  • 0° to 40° C (32° to 104° F)

Housing Material

  • ABS Plastic

  • Weighing
  • Parts Counting
  • Check Counting
  • Averaging
  • Barcode / Label Printing
  • Checkweighing
  • Accumulation of Count
