Images are representations only.

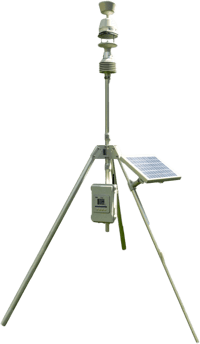

HDMCS-100

Series: HDMCS-100 – All-in-One Meteo Compact Station Brand: Delta OHM S.R.L.

Meteo Compact Station. T / RH / Patm/ Rain

Price
Request a Quote
Stock
Contact for Availability
Request Information


Specifications

Brand

Wind Speed Sensor

  • Ultrasounds

Wind Speed Measuring Range

  • 0 to 50 m/s

Wind Speed Resolution

  • 0.01 m/s

Wind Speed Accuracy

  • ± 0.2 m/s or ± 2 %, the greatest (0 to 35 m/s), ± 3 % (> 35 m/s)

Wind Direction Sensor

  • Ultrasounds

Wind Direction Measuring Range

  • 0 to 359.9°

Wind Direction Resolution

  • 0.1°

Wind Direction Accuracy

  • ± 2° RMSE from 1.0 m/s

Compass Sensor

  • Magnetic

Compass Measurement Range

  • 0 to 360°

Compass Resolution

  • 0.1°

Compass Accuracy

  • ± 1°

Air Temperature Sensor

  • Pt100

Air Temperature Measuring Range

  • -40° to +70° C

Air Temperature Resolution

  • 0.1° C

Air Temperature Accuracy

  • ± 0.15° C ± 0.1 % of measurement

Relative Humidity Sensor

  • Capacitive

Relative Humidity Measuring Range

  • 0 to 100 % RH

Relative Humidity Resolution

  • 0.1%

Relative Humidity Accuracy (@ T = 15…35° C)

  • ± 1.5 % RH (0 to 90 % RH), ± 2 % RH (remaining range)

Relative Humidity Accuracy (@ T = -40…+60° C)

  • ± (1.5 + 1.5 % of measurement) % RH

Barometric Pressure Sensor

  • Piezoresistive

Barometric Pressure Measuring Range

  • 300 to 1100 hPa

Barometric Pressure Resolution

  • 0.1 hPa

Barometric Pressure Accuracy

  • ± 0.5 hPa @ 20° C

Rainfall Sensor

  • Tipping bucket

Rainfall Resolution

  • 0.2 mm

Rainfall Accuracy

  • 99 % up to 120 mm/h

Rainfall Maximum Rainfall Rate

  • 2000 mm/h

Rainfall Collector Area

  • 127 cm2

Power Supply

  • 20 W solar panel integrated charger

Backup Battery

  • 12 V / 3.4 Ah lead-acid rechargeable battery

Wind Speed Averaging Interval

  • Configurable from 1 s to 10 min

Cable Connection

  • Equipped with Plug-&-Play connectors

Operating Temperature

  • -40° to +70° C
  • Minimum temperature for the rainfall sensor 1° C

Protection Degree

  • IP 65

Case

  • Plastic material. Metal parts: AISI 316

Measuring Interval

  • 1, 2, 5, 10, 15, 30 seconds
  • 1, 2, 5, 10, 15, 30, 60 minutes

Logging Interval

  • 1, 2, 5, 10, 15, 30 seconds
  • 1, 2, 5, 10, 15, 30, 60 minutes

Internal Memory

  • Circular management or stop logging if memory is full.
  • Number of samples: > 240,000

Display

  • Custom LCD

Documentation

Datasheet
