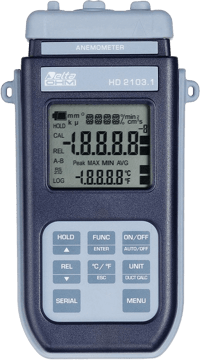

Images are representations only.

HD2103.2

Series: HD2103 – Anemometer-Thermometer Brand: Delta OHM S.R.L.

Anemometer-Thermometer Data Logger

Price
Request a Quote
Stock
Out of Stock
Request Information

Specifications

Brand

Dimensions (Length x Width x Height)

  • 185 x 90 x 40 mm

Weight

  • 470 g (complete with batteries)

Materials

  • ABS, rubber

Display

  • 2x4-1/2 digits plus symbols
  • Visible area: 52 x 42 mm

Operating Temperature

  • -5…50° C

Storage Temperature

  • -25…65° C

Working Relative Humidity

  • 0…90 %RH without condensation

Protection Degree

  • IP66

Batteries

  • Four 1.5 V type AA batteries

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Power Absorbed with Instrument Off

  • 20 μA

Mains

  • Output mains adapter 12 Vdc / 1000 mA

Measuring Units

  • °C - °F - m/s - km/h - ft/min - mph - knot - l/s - m³ /s - m³ /min - m³ /h - ft3 /s - ft3 /min WCT

Security Data Stored

  • Unlimited, independent of battery charge conditions

Date and Time

  • In real time

Accuracy

  • 1 min/month max drift

Measured Values Storage - Model HD2103.2 Type

  • 2000 pages containing 19 samples each

Quantity

  • Total of 38000 samples

Storage Interval

  • 1,5,10,15,30 s,
  • 1,2,5,10,15,20,30 min
  • 1-Hour

Serial Interface RS-232C Type

  • RS-232C electrically isolated

Baud Rate

  • Can be set from 1200 to 38400 baud

Data bit

  • 8

Parity

  • None

Stop bit

  • Xon/Xoff

Serial Cable Length

  • Maximum 15 m

Print Interval

  • Immediate or 1,5,10,15,30 s,
  • 1,2,5,10,15,20,30 min
  • 1-Hour

USB Interface - Model HD2103.2 Type

  • 1.1 - 2.0 electrically isolated

Input Module for the Probes

  • 8-Pole Male DIN 45326 Connector

Serial Interface

  • 8-Pole MiniDin Connector

USB Interface

  • Mini USB type B

Mains Adapter

  • 2-Pole Connector (positive at centre)

Pt100 Measurement Range

  • -200…+650° C

Pt1000 Measurement Range

  • -200…+650° C

Resolution

  • 0.1° C

Drift After 1 Year

  • 0.1° C/year

Documentation

Datasheet

Manual
