Status Digital Indicator, DM3400 Series
Images are representations only.

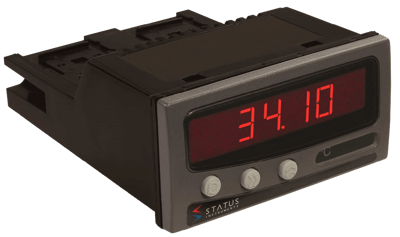

DM3420/S2

Series: DM3400 Series Digital Indicator Brand: Status Instruments

Power Supply (20-35V DC)

Price
228,00 € EUR
Stock
In Stock 5 - 7 days
Request Information

Specifications

Brand

Accuracy

  • 0.05 % of Full Scale (Process Indicator)
  • Cold Junction Error: ± 0.5° C (± 0.9° F) (Universal Temperature Indicator)
  • Cold Junction Tracking: 0.05° C/°C (Universal Temperature Indicator)
  • Isolated Re-Transmission: 0.07 % of Full Scale

Approvals & Certifications

  • Electrical Safety: UL BS EN 61010-1, Flammability: UL 94VO
  • EMC BS EN 50081-1 (Emissions), BS EN 50082-2 (Susceptibility)
  • Flammability: IEC 707 FV0

Consumption

  • 6 VA, Max.

Current

  • 0-20 mA (Process Indicator)
  • Excitation Current: 300-550 µA (Universal Temperature Indicator)
  • Ripple Current: < 3 µA

Display

  • 4-Digit Red LED (14.2 mm High/High Intensity)
  • -999 to 9,999

Electrical Connectors

  • Termination: Screw Terminal

Electrical Contacts

  • 2 x Changeover Relays Common Wiper

Environmental Protection

  • Sealing: Panel IP65

Excitation Voltage

  • 24 V ± 5 % at 50 mA (Process Indicator)

Humidity

  • 10 to 90 % RH, Non-Condensing

Indication

  • 4 Alarm Red LED Indicators 2.5 mm High Numeric

Input Impedance

  • Current: 47 ohms (Process Indicator)
  • Voltage: 1 MΩ (Process Indicator)

Isolation

  • 500 Vac: Breakdown Isolation, Input/Output RMS (Galvanically Isolated)

Linearization

  • Linear (Process Indicator)
  • Square Root (Process Indicator)

Load

  • Maximum

Materials of Construction

  • ABS/Polycarbonate

Measurement Accuracy

  • RTD: 0.1° C (32.18° F) ± 0.05 % of Reading (Universal Temperature Indicator)
  • Thermocouple: ± 0.04 % of FRI ± 0.04 % of Reading or 0.5° C (0.9° F), whichever is greater (Universal Temperature Indicator)

Operating Temperature

  • -30° to 60° C (-22° to 140° F)

Output

  • 0-23 mA

Output Load

  • 1 Kiloohm

Power

  • AC - Max.
  • DC - Max.

Power Supply

  • S1: 90-253 Vac, (50/60 Hz)
  • S2: 20-35 Vdc

Power Supply Effect

  • Voltage Effect: 0.2 μA/V

Resistance

  • Maximum
  • Sensor: 18 to 390 ohms (Universal Temperature Indicator)

Resistance Effect

  • Lead Resistance Effect: 0.002° C/ohms (Universal Temperature Indicator)

RTD Type

  • Pt100

Sensor, Probe Type

  • E Thermocouple
  • J Thermocouple
  • K Thermocouple
  • L Thermocouple
  • N Thermocouple
  • RTD
  • R Thermocouple
  • S Thermocouple
  • T Thermocouple

Stability

  • 1 µA/°C

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Supply Voltage

  • 0-10 V (Process Indicator)
  • Maximum

Temperature Range

  • Cold Junction Range: -30° to 60° C (-22° to 140° F) (Universal Temperature Indicator)
  • Sensor: -200° to 850° C (-328° to 1,562° F) (Universal Temperature Indicator)

Thermal Drift

  • Span: 0.01 %/°C
  • Zero: 0.008° C/°C (Universal Temperature Indicator)
  • Zero: 0.1 µV/°C

Time Constant

  • Filter Off: < 1 second (to 63 % of Final Value)

Update Time

  • 250 ms, max.
  • Warm-Up Time: 120 seconds to Full Accuracy

Voltage

  • Maximum

Documentation

Data Sheets

View Product Series
