Images are representations only.

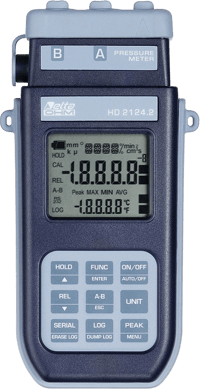

HD2124.2

Series: HD2124 – Manometer – Thermometer Brand: Delta OHM S.R.L.

Manometer – Thermometer Data Logger – 2 Inputs

Price
Request a Quote
Stock
Contact for Availability
Request Information


Specifications

Brand

Dimensions (Length x Width x Height)

  • 185 x 90 x 40 mm

Weight

  • 470 g (complete with batteries)

Materials

  • ABS, rubber

Display

  • 2 x 4-1/2 characters plus symbols Visible area: 52 x 42 mm

Operating Temperature

  • -5° to 50° C

Storage Temperature

  • -25 to 65° C

Working Relative Humidity

  • 0…90 % RH without condensation

Protection Degree

  • IP66

Batteries

  • Four 1.5 V type AA batteries

Autonomy

  • 200 hours with 1800 mAh alkaline batteries

Current Absorbed with Instrument Off

  • 20 μA

Mains

  • Output mains adapter 12 Vdc / 1000 mA

Measuring Units

  • °C - °F - Pa - hPa - mbar - bar - atm mmHg - mmH₂O - kgf/cm2 - psi - inchHg

Security of Data Stored

  • Unlimited, independently of battery charge conditions

Date and Time

  • In real time

Time Accuracy

  • 1 min/month max drift

Values Storage - Model HD2124.2 Type

  • 2000 pages of 16 samples each

Quantity

  • 32,000 pairs of samples

Storage Interval

  • 1,5,10,15,30 s
  • 1,2,5,10,15,20,30 min
  • 1-Hour

Serial Interface RS-232C Type

  • RS-232C electrically isolated

Baud Rate

  • Can be set from 1200 to 38400 baud

Data bit

  • 8

Parity

  • None

Stop bit

  • 1

Flow Control

  • Xon/Xoff

Serial Cable Length

  • Maximum 15 m

Print Interval

  • Immediate or 1,5,10,15,30 s,
  • 1,2,5,10,15,20,30 min
  • 1-Hour

USB Interface - Model HD2124.2 Type

  • 1.1 - 2.0 electrically isolated

Input Module for the Probes

  • 2 8-Pole Male DIN 45326 connectors

Serial Interface

  • 8-Pole MiniDin Connector

USB Interface - Model HD2124.2

  • Mini USB type B

Mains Adapter

  • 2-Pole Connector (positive at centre)

Pt100 Measurement Range

  • -200 to +650° C

Resolution

  • 0.1° C

Instrument Accuracy

  • ± 0.1° C

Drift After 1 Year

  • 0.1° C/year

Documentation

Datasheet

Manual
