Status Instruments Panel Meter, DM4500U
Images are representations only.

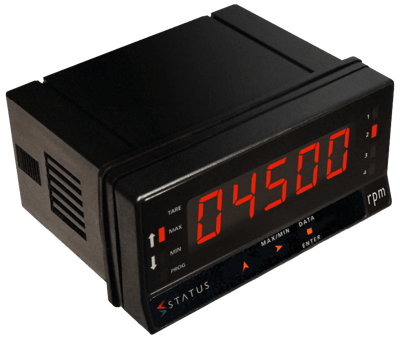

DM4500U/S*

Series: DM4500U Panel Meter Brand: Status Instruments

Panel Mount Digital Indicator

Price
217,10 € EUR
Stock
In Stock 5 - 7 days
Request Information

Specifications

Brand

Accuracy

  • ± 0.2° C (± 0.36° F) - Cold Junction
  • 0.1 % of Full Scale ± 1-bit - mA/V Option
  • 0.2 % of Reading at ± 0.6° C (± 1° F)
  • 0.2 % of Reading at ± 1° C (± 2° F)
  • 0.4 % of Reading at ± 0.6° C (± 1° F)
  • 0.4 % of Reading at ± 1° C (± 2° F)

Approvals & Certifications

  • UL 94 V-0

Communication

  • RS-485

Configuration

  • Asymmetric Differential

Current

  • 100 µA, Max.
  • 5 A, Max.
  • 50 mA - Max.
  • 8 A, Max.

Display

  • -19999 to 19999, 5-Digits Tricolour 14 mm
  • LED Display 4 for Functions & 4 for Outputs

Enclosure, Body Material

  • Polycarbonate (UL 94 V-0)

Environmental Protection

  • IP65

Excitation Voltage

  • 10 V at 60 mA
  • 24 V at 60 mA
  • 5 V at 60 mA

Frequency

  • 0.05 to 4 Hz (Cut-Off Frequency), 20 dB/Decade (Slope)

Function

  • Tare for Load Cell

Humidity

  • < 95 % RH, Non-Condensing

Input

  • < 1 mA DC - Pt100 Sensor Excitation
  • ± 10 Vdc - Potentiometer Input, Process Voltage
  • ± 15 mV - Load Cell Input
  • ± 150 mV - Load Cell Input
  • ± 20 mA DC - Process Current
  • ± 30 mV - Load Cell Input

Input Impedance

  • 1 MΩ - Process Input for Voltage, Potentiometer Input
  • 100 MΩ - Load Cell Input
  • 15 ohms - Process Input for Current

Load

  • ≤ 500 ohms, Max.
  • ≥ 10 kΩ, max.

Operating Temperature

  • -10° to 60° C (14° to 140° F)

Output

  • 0-10 V
  • 4-20 mA

Power

  • 1,250 VA, Max.
  • 150 W, Max.
  • 192 W, Max.
  • 2,000 VA, Max.

Power Supply

  • 10.5 - 70 Vdc for DM4500/S2
  • 100-300 Vdc for DM4500 / S1
  • 22-53 Vac for DM4500/S2
  • 85-265 Vac for DM4500/S1

Resistance

  • 200 ohms - Potentiometer Min. Value
  • 3 Milliohms, Max.
  • 30 Milliohms, Max.
  • 40 ohms/Cable - Max.

Resolution

  • ± 15-bit - Conversion
  • 0.001 % - Display Resolution
  • 1 µA, Max.
  • 1 µV, Max.
  • 1 mV, Max.
  • 13-bits for mA/V Option

Response Time

  • 50 ms

Sensor, Probe Type

  • J Thermocouple
  • K Thermocouple
  • Pt100
  • T Thermocouple

Storage Temperature

  • -25° to 85° C (-13° to 185° F)

Supply Voltage

  • 115-230 Vac, 0.2 A / 250 V - External Fuses (DIN 41661) for DM4500 / S1
  • 125 Vdc, Max.
  • 150 Vdc, Max.
  • 24-48 Vac, 2 A/250 V - External Fuses (DIN 41661) for DM4500/S2
  • 250 Vac, Max.
  • 277 Vac, Max.
  • 50 Vdc, Max.

Switch Type

  • Relay
  • SPDT
  • SPST
  • Transistor (NPN/PNP)

Temperature Coefficient

  • 100 ppm/°C

Temperature Range

  • -10° to 60° C (14° to 140° F) - Cold Junction Compensation
  • -150° to 1,200° C (-238° to 2,192° F) for Thermocouples

Thermal Drift

  • ± 0.05° C/°C
  • 0.2 mV/°C - OPT4500/V
  • 0.5 µA/°C - OPT4500/mA

Transfer Time

  • 1 ms, max.
  • 10 ms, max.

Update Time

  • 15 minutes

Documentation

Data Sheets

View Product Series
