Images are representations only.

PMU201

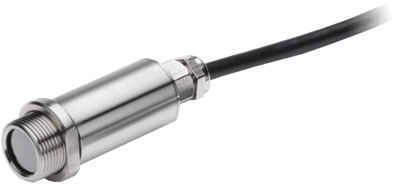

Series: PyroMiniUSB USB Infrared Temperature Sensor Brand: Calex Electronics Limited
Price
Request a Quote
Stock
Out of Stock
Request Information

  • Field of View - 20:1 Divergent Optics

Specifications

Brand

Accuracy

  • ± 1 % of Reading or ± 1° C (± 1.8° F) whichever is greater

Ambient Temperature Range

  • 0° to 75° C (32° to 167° F)

Approvals & Certifications

  • EMC: EN 61326-1, EN 61326-2-3
  • RoHS

BSP Connection

  • 1/8” BSP

Cable Length

  • 5 feet (1.5 metres)

Communication

  • Data Logging
  • Modbus over Serial Line

Current

  • 50 mA - Max.

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP65

Humidity

  • 95 % Relative Humidity, Non-Condensing, Max.

Interface Connection

  • USB Port

Mounting

  • M16 x 1 mm Pitch - Thread

Repeatability

  • ± 0.5 % of Reading or ± 0.5° C (± 0.9° F) whichever is greater

Response Time

  • 125 milliseconds (90 % Response)

Supply Voltage

  • 5 Vdc (Provided by USB)

Temperature Range

  • -20° to 1,000° C (-4° to 1,832° F)

Documentation

Data Sheets
