Images are representations only.

PD6800-0K0

Series: ProtEX-Pro PD6800 Explosion-Proof Process & Level Meter Brand: Precision Digital Corporation

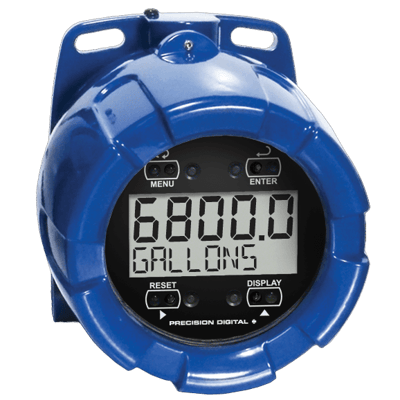

PRECISION DIGITAL ProtEX-Pro Process Meter with Backlight

Price
Request a Quote
Stock
Out of Stock
Request Information

Specifications

Brand

Approvals & Certifications

  • ATEX, II 2 GD. Ex d IIC T6 Gb. Ex Tb IIIC T85° C Db
  • CSA, Class I, Div. 1, Groups B, C, D, Class II, Div. 1, Groups E, F, G, Class III, Div. 1, T6. Class I, Zone 1, Ex d IIC T6
  • FM, Class I, Div. 1, Groups B, C, D, Class II, Div. 1, Groups E, F, G, Class III, Div. 1, T6. Class I, Zone 1, AEx d IIC T6 Gb. Zone 21, AEx Tb IIIC T85° C
  • IEC, Ex d IIC T6 Gb. Ex Tb IIIC T85° C Db

Communication

  • HART

Conduit Connection

  • 3/4” NPT

Display

  • 5-Digits - Upper Display
  • 7 Alphanumeric Character - Lower Display

Enclosure, Body Material

  • Explosion-proof Die Cast Aluminum with Glass Window

Environmental Protection

  • IP66
  • IP68
  • NEMA 4X

Function

  • Linear
  • Programmable Exponent
  • Square Root

Humidity

  • 0 to 90 % Non-Condensing

Input

  • 4-20 mA

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Power

  • 0.2 W
  • 0.25 W
  • 0.5 W
  • 0.75 W

Storage Temperature

  • -40° to 85° C (-40° to 185° F)

Supply Voltage

  • 9-36 Vdc

Voltage Drop

  • 3.0 Vdc at 20 mA without Loop-Powered Backlight
  • 6.0 Vdc at 20 mA with Loop-Powered Backlight

Documentation

Certifications

Datasheets

Instruction Manuals
